This is the third version of the popular DIY SmartBlinds project. This version is designed for the NEMA 17 Stepper motor which is about 20x more powerful than the stepper used in v1. The mounting holes are the same in all versions so that you can reuse your mounting bracket or screws in your wall. The main changes include:
- Redesigned rectangular body to fit the NEMA 17 motor
- Faster printing design
- Easier assembly
This package includes:
- Top Lid
- Bottom Lid with electronics mounting brackets
- Bottom Lid without mounting options – this is for BYO Mounting
- Main Body max motor depth 40mm
- 3 other Main Body’s with left, right and rear mounting holes for various mounting options
- Cog for 5mm pull string beads – may not be a perfect fit for your beads
- Cog for 4mm pull string beads – may not be a perfect fit for your beads

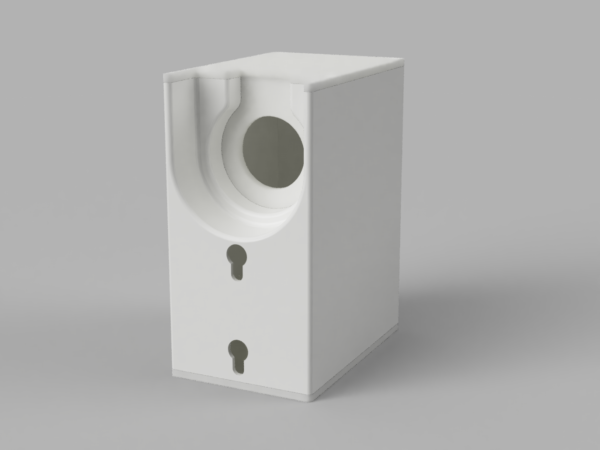

Images are of 3D renderings of the designs. Approximate dimensions after printing and assembly:
The body height is 96mm, width 49mm and depth 73mm.
NOTE: This purchase includes the STL file(s) ONLY for you to print. Due to the nature of 3D Printing technology I can not guarantee your results will be the same as mine. I do not take responsibility for the result of your print. Upon a successful checkout, you will be emailed a link to the selected downloads. This link will expire in 7 days. You are responsible for downloading this file within this time period. If you fail to download these files in that time period, you will be required to repurchase the files. Please make sure you check your junk mail folder if you have not received your email.
Thank you for paying this small gratuity for these designs. By downloading this design you are supporting my work in providing the community practical solutions.
