DIY Smart Blinds v3 – How To with NEMA 14 or NEMA 17

This project aims to upgrade the popular DIY Smart Blinds v1.1 with a Nema stepper motor in order to increase the torque for moving roller blinds. For this project, my biggest concern is the size of the Nema motors. The aim of this version is to keep the form factor of the device as small as possible, give it as much pulling power as possible and allow for a standard 12v power supply. I have estimated that the total cost of this project is between $40 AUD – $60 AUD depending on where you source your components. Below is a short teaser of the project.

The Motor

For this project I will use the NEMA 14 and NEMA 17 Stepper motor. The NEMA 14 motor is a smaller alternative to the NEMA 17 measuring at 35mm x 35mm x 26mm. They are both 12v. NEMA 14 has roughly the torque of 14N.cm (20oz.in.) and NEMA 17 44N.cm. compared to the 28BYJ-48 motor used in the previous design which is approx. 2.9N.cm. This should make this devices much stronger (based on estimated values from manufacturers specs, results may vary). The NEMA 17 version may even be able to to pull a small roller-blind. The NEMA motor come in various lengths (depths). For this design I chose to use lengths as follows NEMA 14, 29mm(max) and NEMA 17, 40mm(max).

Nema 14 Motor

The Driver

To control the stepper motor, the design should use the A4988 motor driver. It is a noisy driver but it is inexpensive and capable of controlling these motors.

A4988 Stepper Motor Driver

The Processor

I have used the Node MCU ESP8266 processor for many of my projects. It can be easily programmed using the Arduino IDE, its small and it has WiFi built in. Not to mention great community support. Hence for this project I will use it again.

The second option is the NodeMCU ESP8266 WeMos D1. This processor has a smaller form factor and could also be a good choice.

Considerations

  • NEMA 14 or NEMA 17 stepper motors get hot when they run, a 3D printed PLA enclosure may not be able to sustain the heat buildup during operation. Testing shows that typical operation only lasts a 5-10sec then pause. Hopefully this should not raise the temperature too high.
  • For this design I have chose the NEMA 14 motor dues to its size but I am also going to make a NEMA 17 variant to get an even more powerful device for those that need it.
  • NodeMCU is a better choice because it has VCC in pins. The WeMos D1 needs to be powered through the micro USB port.
  • To power the circuit from one 12v power supply, a 12v to 5v Buck converter will be required. There are various but converters on the market. Make sure you choose one that can handle a current of 1-2A as a stepper motor can be drain quite a bit of current per phase.
12v to 5v Buck Converter
Test platform

Schematic Diagram

What you will need

  • ​nodeMCU Board
  • A4988 Motor Driver
  • 12v to 5v Buck Converter
  • NEMA14 or NEMA17 Stepper Motor
  • 100uF 16v Capacitor on the input voltage
  • 5.5mm x 2.5mm DC Power Port
  • (8x) 2.5mm x 6mm Button Head Screws (for the lids)
  • (2x) 2.5mm x 6mm Self Tapping Screws (for nodeMCU mounting)
  • (4x) M3 x 6mm Countersunk Crews (for the motor mount)
  • STL Files (link below)
  • Software (links below)

Software

DescriptionLink
Arduino Sketch (this may evolve over time)GitHub link
Homebridge plugin / Homekit GitHub link
Samsung SmartThings – device handlerGitHub link

The Design Shape

What form factor should the DIY SmartBlinds v3 have?

  • Rectangular Shape similar to v2 (54%, 13 Votes)
  • L-Shape similar to v1 (46%, 11 Votes)

Total Voters: 24

Loading ... Loading ...

Thank you everyone that participated in the survey. As requested, the design is rectangular. I designed it with a chain guard all inclosed. Checkout the design renders and some first assembly photos below.

3D Printing

TIP: When printing the main body, print it with a brim. 8mm should be sufficient. Due to the walls on the main body being only 2.5mm thick, I found that when I printed it without the brim the model would get unstuck halfway through and the print was destroyed.

Brim around the Main Body for a sturdy print (NEMA14 Variant shown)
Printed on: Prusa i3 MK3
Filament used: 3D Fillies PLA+ Marble
Print mode: Built plate brim for the body only/No supports
Print quality: 0.2mm
Print time: 5-7hrs

Assembly (NEMA14 & NEMA17)

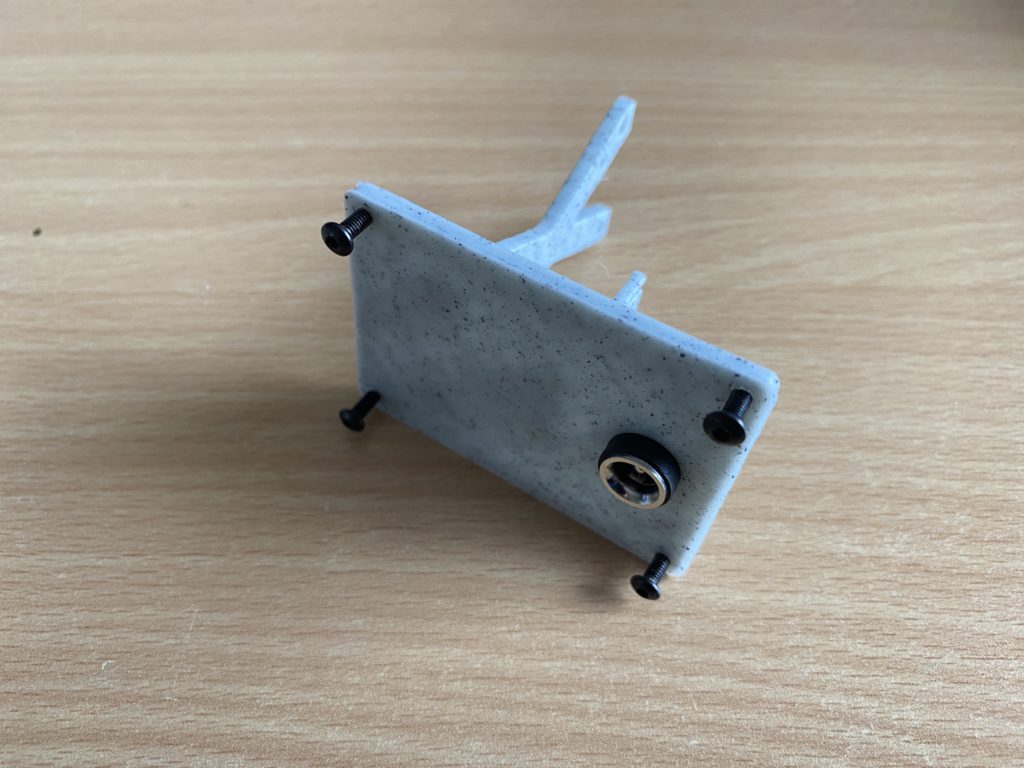

DIY SmartBlinds lineup – from left to right: DIY SmartBlinds v3 NEMA17, DIY SmartBlinds v3 NEMA14, DIY SmartBlinds v2, DIY SmartBlinds v1
